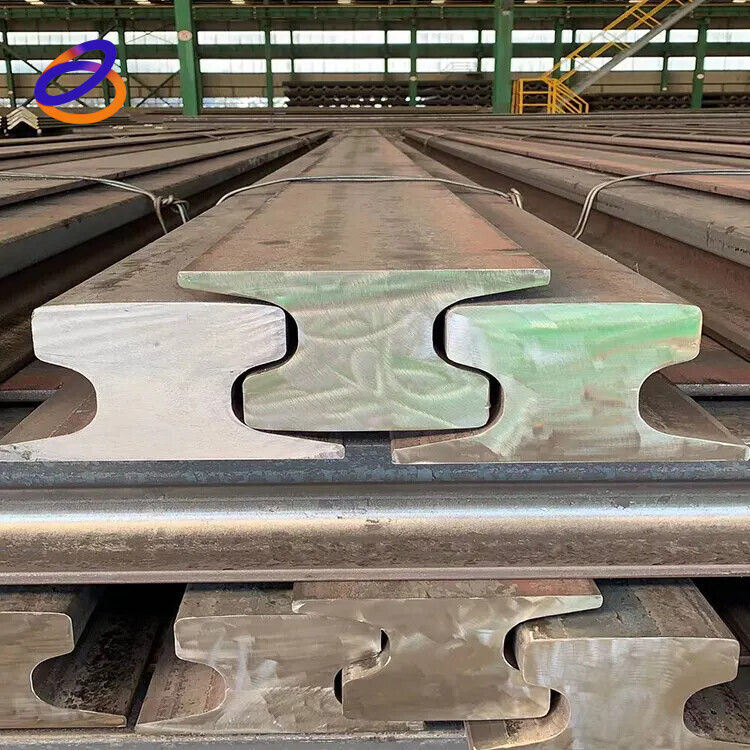

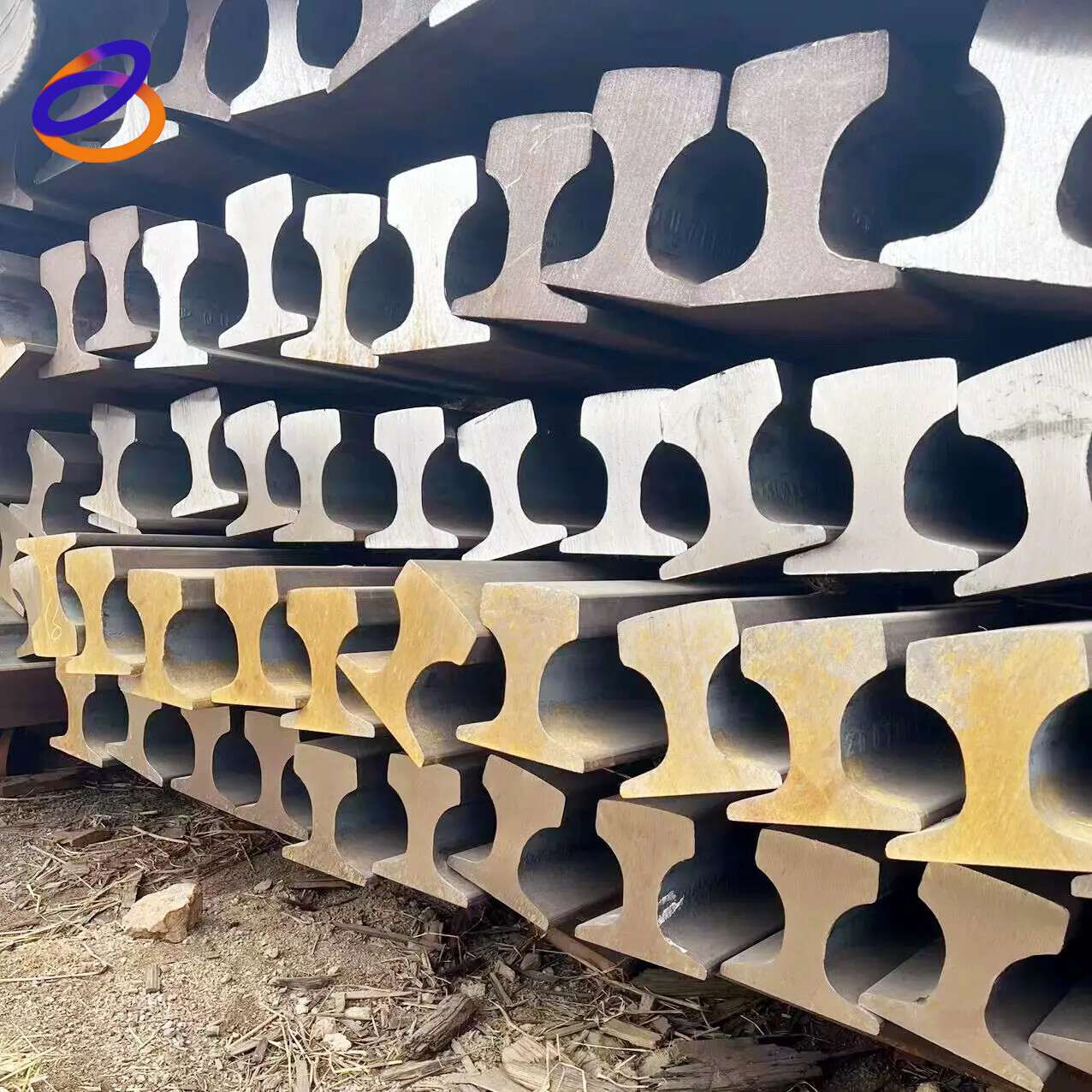

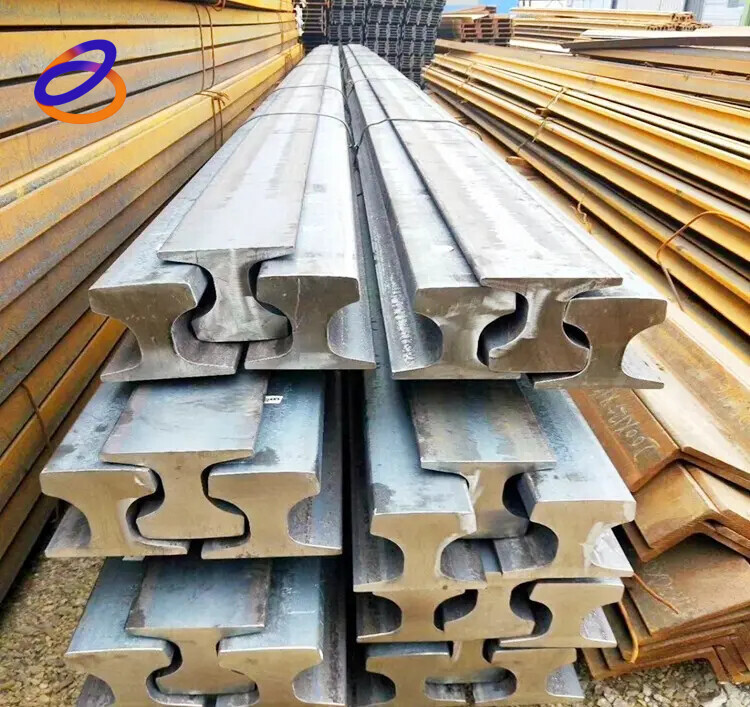

Rail
Rails are the main components of railway tracks. Their function is to guide the wheels of locomotives and vehicles forward, bear the huge pressure of the wheels, and transmit it to the sleepers.
Request a Quote →

Product Description

Name of CommoditySpecificatonMaterials (Steel Grade)Standard of ProductsTheory Weight (kgs/M)Length of Dimension(M)Packed In Bundle With Iron Wire (pcs/bundle)
     Light Rail4kgs/mQ235Q/YG001-20144kgs/m 6,875
8kgs/mQ235Q/YG001-20148.42kgs/m55
12kgs/mQ235GB11264-201212.2kgs/m36
15kgs/mQ235/55QGB11264-201215.2kgs/m   6,8,9,1028
18kgs/mQ235/55QQ/YG001-201418.06kgs/m21
22kgs/mQ235/55QGB11264-201222.3kgs/m21
24kgs/mQ235/55QQ/YG001-201424.46kgs/m21
30kgs/mQ235/55QGB11264-201430.1kgs/m15
Heavy Rail38kgs/mU71MnGB2585-200738.733kgs/M 12,12.510
43kgs/mU71MnGB2585-200744.653kgs/M10
50kgs/mU71MnGB2585-200751.514kgs/M10
60kgs/m45/50MnQ/YYG002-200831/34/36/39/41kgs/M12,12.510
  Crane RailQU70    U71MnYB/T5055-9352.8kgs/m  1210
QU80YB/T5055-9363.69kgs/m10
QU100YB/T5055-9388.96kgs/m5
QU120YB/T5055-93118.1kgs/m5



Product Show

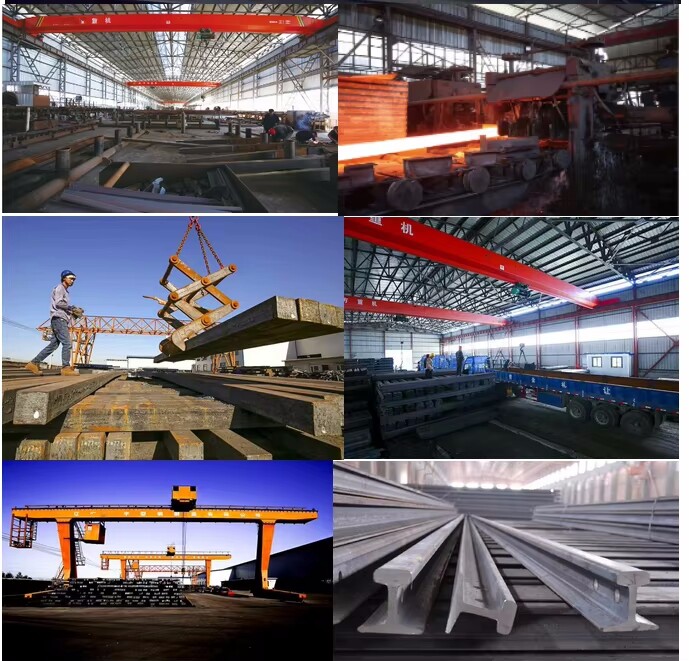

Factory Tour
