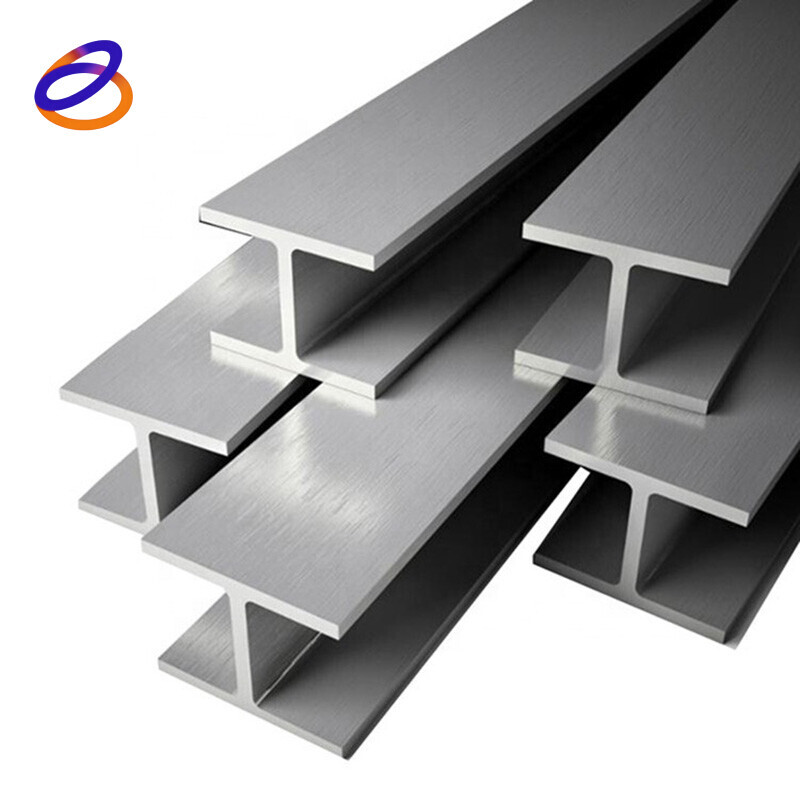

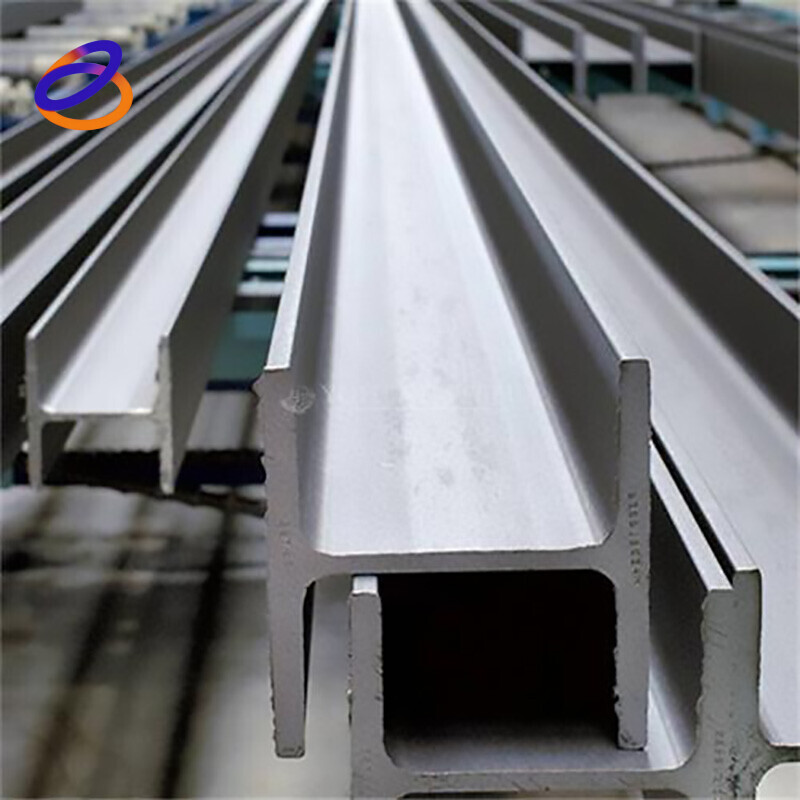

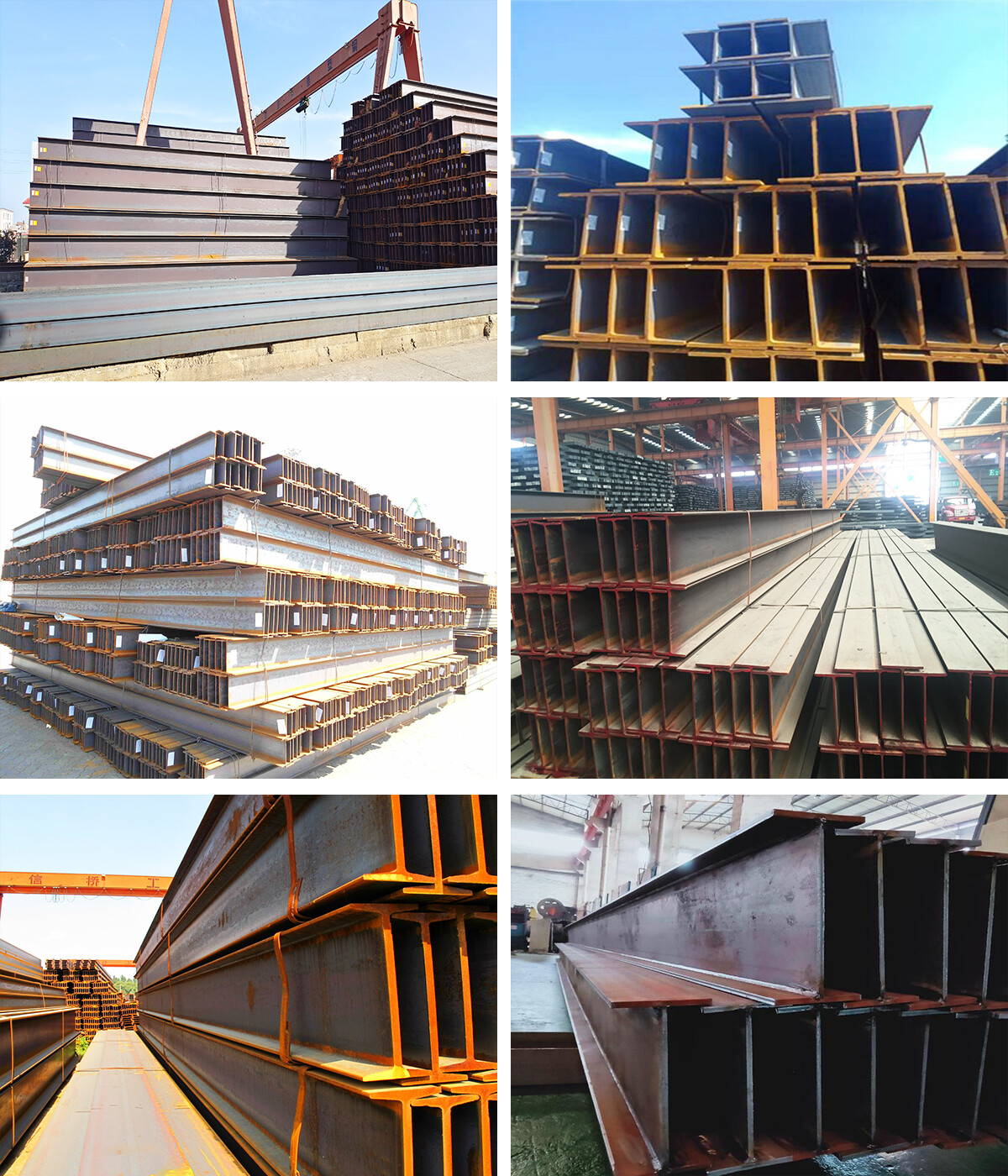

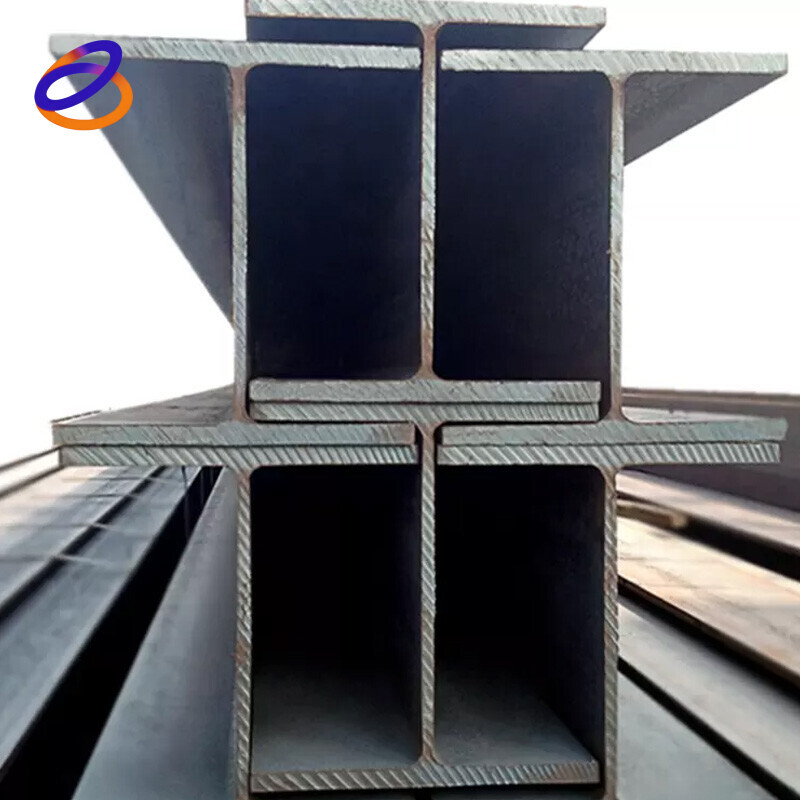

H-beam as a new type of economic construction steel. The section shape of H-beam steel is economical and reasonable, the mechanical properties are good, and the elongation of each point on the section is uniform and the internal stress is small. Compared with the ordinary I-beam steel, it has the advantages of more large section modulus,more light weight and more saving metal, which can reduce the building structure by 30-40%. And because its legs inside and outside parallel, leg end is a right Angle, assembled into components, can save the workload of welding and riveting up to 25%. It is often be used in large buildings (such as workshops, high-rise buildings, etc.), as well as Bridges, ships, lifting and transportation machinery, equipment foundation, supports, foundation piles, etc.
The National standard of Hot-rolled H-beam (GB/T11263-1998) divides H-beam into narrow flange, wide flange and steel pile, and their codes are hz, hk and hu respectively. Narrow flange H-beams are suitable for beams or flexural members, while wide flange H-beams and H-beams are suitable for axial compression members or flexural members.
Material | A36、St37、S235J0、S235J2,St52,16mn,S355JOQ195,Q215,Q235B,Q345B,S235JR,S355JR,S355,SS440,SM400A,SM400B |
production range | A572,GR50,GR60,SS540H100*100-H400*400H150*75 -H900*300 |
Length | 6m, 9m, 12m or as customerrequirement |
Technology | Hot rolled,welded |
Standard: | ASTM,AISI,JIS,GB, DIN,EN |
Surface | Galvanized, paint;or as your request |
Supply ability | 2000Ton/day |
Business type | Manufacturer |
Certification: | ISO, SGS,BV |
Application | widely used in building structure and engineering construction, such as room beam,ship beam, industrial furnace, etc. |
Loading port | any port in China |
Packing | standard export packing or as your requirement |
Payment Terms | T/T, L/C at sight,West Union,D/P,D/A,Paypal |
